Venti-Cool 10U - Industrial Ducting Cooler
Venti-Cool 10U - Industrial Ducting Cooler
-
Modular units suitable for any area.One unit can cool up to 700 sq.ft.* -
Cool Flow Dispenser for enhanced cooling -
Weather resistant UV Stabilized engineering plastic body industrial cooler -
0.45 kW, 2 speed motor for powerful air delivery of 10000 CMH -
Three side cooling pads for superior cooling -
Symphony accessories for easy and quick installation in a couple of hours
*Scroll down for disclaimer
Universal Installations for Industrial Ducting Cooler
A Venti-Cooling unit can be adjusted to fit into both large and small spaces. This flexibility also makes future expansion simple.
Technical Specifications of Industrial Ducting Cooler
Discharge -
Bottom / Side
Nominal air
delivery (cmh) -
10000
Cooling area (sq.ft.) -
up to 700
Net weight (kg) -
57
Operating weight (kg) -
73
Input power supply
(V/Hz/Ph) -
230/50/1
Motor power (kw) -
0.450

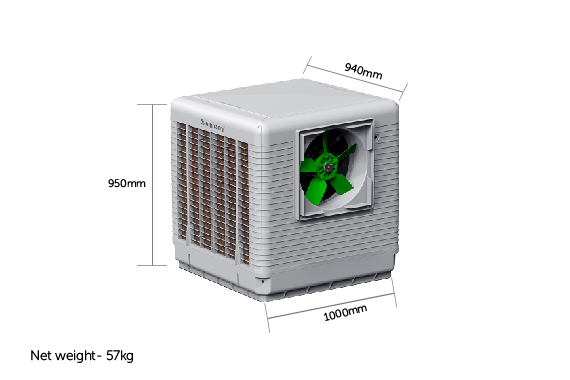

Outside dimensions
(LxBxH in mm) -
1000 X 940 X 950
Air outlet dimensions
(HxW in mm) -
500 x 500
Body material -
UV Stabilized Engineering Plastic
Tank capacity (L) -
31
Air moving device -
Fan
Fan diameter (mm) -
425
Cooling media -
Honeycomb pads
Pad thickness (mm) -
60
Cooling surface area
of pad (sqm) -
1.45
Minimum cooling
efficiency(%) -
75
Number of
speeds (nos.) -
2
Duct length (m) -
Up to 12
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 6
Container quantity (40HQ) -
90 (SKD)
Discharge -
Bottom / Side
Nominal air
delivery (cmh) -
10000
Cooling area (sq.ft.) -
up to 700
Net weight (kg) -
57
Operating weight (kg) -
73
Input power supply
(V/Hz/Ph) -
230/50/1
Motor power (kw) -
0.450
Discharge -
Bottom / Side
Nominal air
delivery (cmh) -
10000
Cooling area (sq.ft.) -
up to 700
Net weight (kg) -
57
Operating weight (kg) -
73
Input power supply
(V/Hz/Ph) -
230/50/1
Motor power (kw) -
0.450
Outside dimensions
(LxBxH in mm) -
1000 X 940 X 950
Air outlet dimensions
(HxW in mm) -
500 x 500
Body material -
UV Stabilized Engineering Plastic
Tank capacity ([tr.) -
31
Air moving device -
Fan
Fan diameter (mm) -
425
Cooling media -
Honeycomb pads
Pad thickness (mm) -
60
Cooling surface area
of pad (sq.mtr.) -
1.45
Minimum cooling
efficiency(%) -
75
Number of
speeds (nos.) -
2
Duct length (m) -
Up to 12
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 6
Container quantity (40HQ) -
90 (SKD)
Industry Use Cases for Industrial Ducting Cooler
Automobile Industry
Suitable for workshops making ancillaries and parts, large garages, and service centers. Gain indirect benefits like improved employee morale and productivity leading to greater innovation.
Agriculture Industry
Suitable for all agricultural produce markets in the supply chain. Helps improve employee morale, as well as reduces food spoilage thus resulting in higher profitability.
Metal Industry
Suitable for workshops, plants, mills making molded or beaten goods. Enjoy benefits like a positive work environment, reduced downtime, and higher profitability.
Textile Industry
Suitable for textile mills, bureaus, workshops, and warehouses. Gain indirect benefits like improved employee morale, concentration, and productivity.
IT Industry
Suitable for large IT parks and smaller innovation centers. Enhances employee morale and productivity while fostering innovation.
Leather Industry
Suitable for slaughterhouses and tanneries, as well as workshops making leather goods. Gain indirect benefits like higher innovation, leading to higher profitability.
Petrochemicals Industry
Suitable for petroleum cracking plants, chemical factories, warehouses, and petrol pumps. Helps improve employee morale and productivity and reduces absenteeism.
Restaurants & Cafe
Suitable for large spaces such as restaurants, cafés, and canteens. Enjoy advantages like improved employee morale as well as increased footfalls and larger orders.
Healthcare Industry
Suitable for hospital wards, nursing homes, and polyclinics, to prevent recirculation of stale air in line with W.H.O. recommendations. Gain indirect benefits like higher staff morale as well as improved patient outcomes.
Related Products
Accessories
Symphony LSV is designed for quick and easy installation. Any installation can be completed within a few hours!
*Actual measurements may vary within +/-15% of specified value
Note: The images and videos of the products are for representation only. The actual product colour/ features / size may vary. Product information shown above is under standard lab test conditions.
