Ducting Cooler for Industries - Venti-Cool 20U
Venti-Cool 20U - Industrial Ducting Cooler
-
Industrial Cooler modular units suitable for any area.One unit can cool up to 1200 sq.ft.* -
Cool Flow Dispenser for enhanced cooling -
Weather resistant UV Stabilized engineering plastic body -
1.1 kW motor for powerful air delivery of 20000 CMH -
Four side cooling pads for superior cooling -
Symphony accessories for easy and quick installation in a couple of hours
*Scroll down for disclaimer
Universal Installations for Industrial Ducting Cooler
A Venti-Cooling unit can be adjusted to fit into both large and small spaces. This flexibility also makes future expansion simple.
Technical Specifications of Industrial Ducting Cooler
Discharge -
Top / Down
Nominal air
delivery (cmh) -
20000
Cooling area (sq.ft.) -
up to 1200
Net weight (kg) -
53
Operating weight (kg) -
115/89
Input power supply
(V/Hz/Ph) -
230/50/1
Motor power (kw) -
1.1

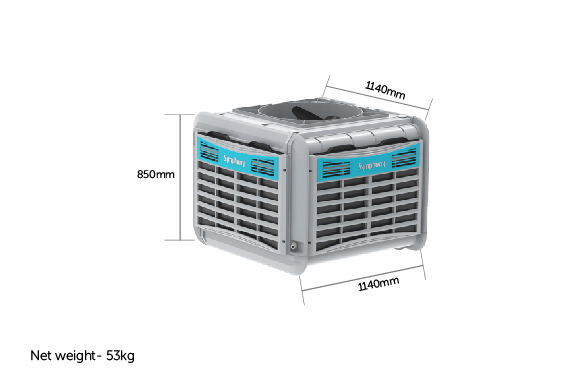

Outside dimensions
(LxBxH in mm) -
1140 X 1140 X 850
Air outlet dimensions
(HxW in mm) -
670 x 670
Body material -
UV Stabilized Engineering Plastic
Tank capacity (L) -
70/40
Air moving device -
Fan
Fan diameter (mm) -
620
Cooling media -
Honeycomb pads
Pad thickness (mm) -
100
Cooling surface area
of pad (sqm) -
1.6
Minimum cooling
efficiency(%) -
80
Number of
speeds (nos.) -
1
Duct length (m) -
upto 18
Air outlets (N) -
upto 8
Container quantity (40HQ) -
60(SKD)
Discharge -
Top / Down
Nominal air
delivery (cmh) -
20000
Cooling area (sq.ft.) -
up to 1200
Net weight (kg) -
53
Operating weight (kg) -
115/89
Input power supply
(V/Hz/Ph) -
230/50/1
Motor power (kw) -
1.1
Discharge -
Top / Down
Nominal air
delivery (cmh) -
20000
Cooling area (sq.ft.) -
up to 1200
Net weight (kg) -
53
Operating weight (kg) -
115/89
Input power supply
(V/Hz/Ph) -
230/50/1
Motor power (kw) -
1.1
Outside dimensions
(LxBxH in mm) -
1140 X 1140 X 850
Air outlet dimensions
(HxW in mm) -
670 x 670
Body material -
UV Stabilized Engineering Plastic
Tank capacity ([tr.) -
70/40
Air moving device -
Fan
Fan diameter (mm) -
620
Cooling media -
Honeycomb pads
Pad thickness (mm) -
100
Cooling surface area
of pad (sq.mtr.) -
1.6
Minimum cooling
efficiency(%) -
80
Number of
speeds (nos.) -
1
Duct length (m) -
upto 18
Air Outlet (N) -
upto 8
Container quantity (40HQ) -
60(SKD)
Industry Use Cases for Industrial Ducting Cooler
Automobile Industry
Suitable for workshops making ancillaries and parts, large garages, and service centers. Gain indirect benefits like improved employee morale and productivity leading to greater innovation.
Agriculture Industry
Suitable for all agricultural produce markets in the supply chain. Helps improve employee morale, as well as reduces food spoilage thus resulting in higher profitability.
Metal Industry
Suitable for workshops, plants, mills making molded or beaten goods. Enjoy benefits like a positive work environment, reduced downtime, and higher profitability.
Textile Industry
Suitable for textile mills, bureaus, workshops, and warehouses. Gain indirect benefits like improved employee morale, concentration, and productivity.
IT Industry
Suitable for large IT parks and smaller innovation centers. Air cooler ventilation system enhances employee morale and productivity while fostering innovation.
Leather Industry
Suitable for slaughterhouses and tanneries, as well as workshops making leather goods. Gain indirect benefits like higher innovation, leading to higher profitability.
Petrochemicals Industry
Suitable for petroleum cracking plants, chemical factories, warehouses, and petrol pumps. Helps improve employee morale and productivity and reduces absenteeism.
Restaurants & Cafe
Suitable for large spaces such as restaurants, cafés, and canteens. Enjoy advantages of the best industrial cooler like improved employee morale as well as increased footfalls and larger orders.
Healthcare Industry
Suitable for hospital wards, nursing homes, and polyclinics, to prevent recirculation of stale air in line with W.H.O. recommendations. Gain indirect benefits like higher staff morale as well as improved patient outcomes.
FAQs - Ducting Cooler for Industries - Venti-Cool 20U
Air cooler ventilation is a system that combines evaporative cooling with effective air circulation to reduce indoor temperatures in industrial spaces. It works by drawing hot air through wet cooling pads, where evaporation cools the air before it is circulated via ventilation ducts.
The Venti-Cool 20U delivers powerful airflow of up to 20,000 CMH and cools areas up to 1200 sq.ft. Its modular design and multiple discharge options (top/down) make it adaptable as a cooler for ventilation across residential, schools, hotels and other commercial establishments.
Air cooling with ventilation uses less energy, reduces operating costs and introduces fresh air into the workspace, improving indoor air quality. This makes it an eco-friendly and cost-efficient alternative to air conditioning especially suited for various industries.
Yes, the Venti-Cool 20U is designed for universal installation. Its flexible ducting and modular units allow it to fit both small and large industrial areas, with easy expansion options to meet future cooling needs.
The four side cooling pads provide maximum surface area for evaporation, ensuring efficient cooling as air passes through. This design enhances the overall cooling effect and ensures uniform air cooler ventilation throughout the space.
The robust 1.1 kW motor drives a large fan to deliver high volumes of cool air efficiently. This powerful motor ensures consistent airflow needed to maintain comfortable temperatures over large industrial areas.
Its weather-resistant UV stabilized plastic body; modular design and powerful air delivery make it versatile and durable for use in hotels, and school classrooms. The unit effectively manages heat while ensuring quiet and efficient operation.
Yes, ventilation coolers use evaporative cooling, which requires significantly less power than traditional refrigeration-based air conditioners, helping industries lower energy consumption and operational costs.
Accessories
As an industrial cooler manufacturer, the Symphony LSV ventilation cooler is designed for quick and easy installation. Any installation can be completed within a few hours!
*Actual measurements may vary within +/-15% of specified value
Note: The images and videos of the products are for representation only. The actual product colour/ features / size may vary. Product information shown above is under standard lab test conditions.
