Air Cooling Unit: Venti-Cool 25U
Venti-Cool 25U - Industrial Ducting Cooler
-
Modular air cooling units suitable for any area. One unit can cool up to 1500 sq.ft.* -
Cool Flow Dispenser for enhanced cooling -
Weather resistant UV Stabilized engineering plastic body -
1.5 kW motor for powerful air delivery of 25000 CMH -
Four side cooling pads for superior cooling -
Symphony accessories for easy and quick installation in a couple of hours
*Scroll down for disclaimer
Universal Installations for Venti-Cool 25U Air Cooling Unit
A Venti-Cooling industrial air cooling unit can be adjusted to fit into both large and small spaces. This flexibility also makes future expansion simple.
Air Cooling Unit Venti-Cool 25U Technical Specifications
Discharge -
Top / Down
Nominal air
delivery (cmh) -
25000
Cooling area (sq.ft.) -
up to 1600
Net weight (kg) -
69
Operating weight (kg) -
131/105
Input power supply
(V/Hz/Ph) -
415/50/3
Motor power (kw) -
1.5

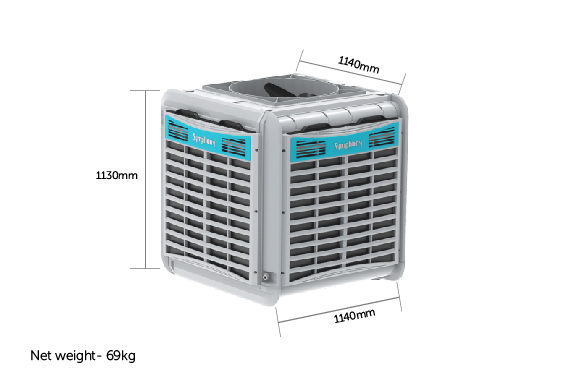

Outside dimensions
(LxBxH in mm) -
1140 X 1140 X 1130
Air outlet dimensions
(HxW in mm) -
670 x 670
Body material -
UV Stabilized Engineering Plastic
Tank capacity (L) -
70/40
Air moving device -
Fan
Fan diameter (mm) -
620
Cooling media -
Honeycomb pads
Pad thickness (mm) -
100
Cooling surface area
of pad (sqm) -
2.6
Minimum cooling
efficiency(%) -
80
Number of
speeds (nos.) -
1
Duct length (m) -
upto 24
Air Outlet Grills (N) [ 250mm X 250mm ] -
upto 12
Container quantity (40HQ) -
54(SKD)
Discharge -
Top / Down
Nominal air
delivery (cmh) -
25000
Cooling area (sq.ft.) -
up to 1600
Net weight (kg) -
69
Operating weight (kg) -
131/105
Input power supply
(V/Hz/Ph) -
415/50/3
Motor power (kw) -
1.5
Discharge -
Top / Down
Nominal air
delivery (cmh) -
25000
Cooling area (sq.ft.) -
up to 1600
Net weight (kg) -
69
Operating weight (kg) -
131/105
Input power supply
(V/Hz/Ph) -
415/50/3
Motor power (kw) -
1.5
Outside dimensions
(LxBxH in mm) -
1140 X 1140 X 1130
Air outlet dimensions
(HxW in mm) -
670 x 670
Body material -
UV Stabilized Engineering Plastic
Tank capacity ([tr.) -
70/40
Air moving device -
Fan
Fan diameter (mm) -
620
Cooling media -
Honeycomb pads
Pad thickness (mm) -
100
Cooling surface area
of pad (sq.mtr.) -
2.6
Minimum cooling
efficiency(%) -
80
Number of
speeds (nos.) -
1
Duct length (m) -
upto 24
Air Outlet Grills (N) [ 250mm X 250mm ] -
upto 12
Container quantity (40HQ) -
54(SKD)
Industry Use Cases for Industrial Air Cooling Units
Automobile Industry
Suitable for workshops making ancillaries and parts, large garages, and service centers. Gain indirect benefits like improved employee morale and productivity leading to greater innovation.
Agriculture Industry
Suitable for all agricultural produce markets in the supply chain. Helps improve employee morale, as well as reduces food spoilage thus resulting in higher profitability.
Metal Industry
Suitable for workshops, plants, mills making molded or beaten goods. Enjoy benefits like a positive work environment, reduced downtime, and higher profitability.
Textile Industry
Suitable for textile mills, bureaus, workshops, and warehouses. Gain indirect benefits like improved employee morale, concentration, and productivity.
IT Industry
Suitable for large IT parks and smaller innovation centers. Enhances employee morale and productivity while fostering innovation.
Leather Industry
Suitable for slaughterhouses and tanneries, as well as workshops making leather goods. Gain indirect benefits like higher innovation, leading to higher profitability.
Petrochemicals Industry
Suitable for petroleum cracking plants, chemical factories, warehouses, and petrol pumps. Helps improve employee morale and productivity and reduces absenteeism.
Restaurants & Cafe
Suitable for large spaces such as restaurants, cafés, and canteens. Enjoy advantages like improved employee morale as well as increased footfalls and larger orders.
Healthcare Industry
Suitable for hospital wards, nursing homes, and polyclinics, to prevent recirculation of stale air in line with W.H.O. recommendations. Gain indirect benefits like higher staff morale as well as improved patient outcomes.
FAQs - Air Cooling Unit: Venti-Cool 25U
VWith a powerful 1.5 kW motor and air delivery of 25,000 CMH, the Venti-Cool 25U ensures consistent airflow through its four side cooling pads, providing uniform cool air ventilation across large factory floors and warehouses of industrial spaces up to 1500 sq. Ft.
The Venti-Cool 25U features a weather-resistant UV stabilized plastic body, thick cooling pads for superior evaporation, modular design for flexibility and multiple discharge options (top/down) to suit various industrial configurations and cooling needs.
The Venti-Cool 25U is ideal for automotive factories, petrochemical plants, IT facilities, retail stores, prayer hall, warehouses and other large industrial spaces requiring efficient and scalable ventilation cooling solutions.
Yes, the Venti-Cool 25U is designed for flexible installation and can be connected to ducting systems up to 24 meters in length. This allows customized air distribution to reach different parts of a facility efficiently.
The cooler uses 100 mm thick honeycomb pads on all four sides, which provide a large surface area for effective water evaporation and cooling. The unit maintains a minimum cooling efficiency of 80%, ensuring reliable performance in hot industrial environments.
Yes, the unit allows for air discharge either from the top or the bottom, offering flexibility installation to suit the layout and airflow requirements of different industrial facilities.
Yes, the modular design allows multiple units to be combined seamlessly to provide enhanced cooling capacity for larger or more complex industrial environments.
Yes, the UV stabilized engineering plastic body and weather-resistant features make it well-suited for outdoor use, capable of withstanding harsh weather conditions.
By maintaining comfortable temperatures and improving air circulation, the cooler helps reduce heat stress, which can enhance employee comfort and productivity.
Accessories
Symphony LSV is designed for quick and easy installation. Any installation can be completed within a few hours!
*Actual measurements may vary within +/-15% of specified value
