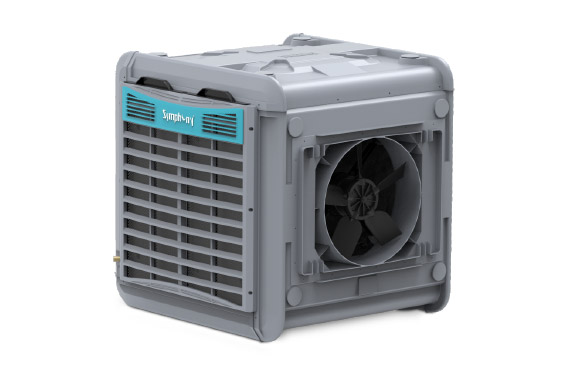

Ventilation Cooling System - Venti-Cool 11U
Industrial Ducting Cooler for Ventilation Cooling
-
Modular units suitable for any area. One unit can cool up to 700 sq.ft.*
-
Cool Flow Dispenser for enhanced ventilation cooling
-
Weather resistant UV Stabilized high grade plastic body
-
0.45 kW, 2 speed motor for powerful air delivery of 11000 CMH
-
Three side cooling pads for superior ventilation cooling
-
Symphony accessories for easy and quick installation in a couple of hours
*Scroll down for disclaimer
Universal Installations for Industrial Ducting Cooler
A cool air ventilation system can be adjusted to fit into both large and small spaces. This flexibility also makes future expansion simple.
Technical Specifications of Ventilation Cooling System
Discharge -
Top / Bottom / Side
Nominal air delivery (cmh) -
11000
Cooling area (sq.ft.) -
up to 700
Net weight (kg) -
47
Operating weight (kg) -
97 / 77 / 97
Input power supply (V/Hz/Ph) -
230/50/1
Motor power (kw) -
0.45
Outside dimensions (LxBxH in mm) -
950 X 950 X 930
Air outlet dimensions (HxW in mm) -
500 x 500
Body material -
UV Stabilized Engineering Plastic
Tank capacity (L) -
50 / 30 / 50
Air moving device -
Fan
Fan diameter (mm) -
425
Cooling media -
Honeycomb pads
Pad thickness (mm) -
60
Cooling surface area of pad (sqm) -
1.6
Minimum cooling efficiency(%) -
75
Number of speeds (nos.) -
2
Duct length (m) -
Up to 12
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 5
Container quantity (40HQ) -
89 (SKD)
Discharge -
Top / Bottom / Side
Nominal air delivery (cmh) -
11000
Cooling area (sq.ft.) -
up to 700
Net weight (kg) -
47
Operating weight (kg) -
97 / 77 / 97
Input power supply (V/Hz/Ph) -
230/50/1
Motor power (kw) -
0.45
Discharge -
Top / Bottom / Side
Nominal air delivery (cmh) -
11000
Cooling area (sq.ft.) -
up to 700
Net weight (kg) -
47
Operating weight (kg) -
97 / 77 / 97
Input power supply (V/Hz/Ph) -
230/50/1
Motor power (kw) -
0.45
Outside dimensions (LxBxH in mm) -
950 X 950 X 930
Air outlet dimensions (HxW in mm) -
500 x 500
Body material -
UV Stabilized Engineering Plastic
Tank capacity (L) -
50 / 30 / 50
Air moving device -
Fan
Fan diameter (mm) -
425
Cooling media -
Honeycomb pads
Pad thickness (mm) -
60
Cooling surface area of pad (sqm) -
1.6
Minimum cooling efficiency(%) -
75
Number of speeds (nos.) -
2
Duct length (m) -
Up to 12
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 5
Container quantity (40HQ) -
89 (SKD)
Industry Use Cases for Industrial Ducting Cooler
Automobile Industry
Suitable for workshops making ancillaries and parts, large garages, and service centers. Gain indirect benefits like improved employee morale and productivity leading to greater innovation.
Agriculture Industry
Suitable for all agricultural produce markets in the supply chain. Helps improve employee morale, as well as reduces food spoilage thus resulting in higher profitability. This Industrial cooler price is much less than air conditioning system.
Metal Industry
Suitable for workshops, plants, mills making molded or beaten goods. Enjoy benefits like a positive work environment, reduced downtime, and higher profitability.
Textile Industry
Suitable for textile mills, bureaus, workshops, and warehouses. Gain indirect benefits like improved employee morale, concentration, and productivity.
IT Industry
This cooler ventilation system is suitable for large IT parks and smaller innovation centers. Enhances employee morale and productivity while fostering innovation.
Leather Industry
Ventilation cooling system is suitable for slaughterhouses and tanneries, as well as workshops making leather goods. Gain indirect benefits like higher innovation, leading to higher profitability.
Petrochemicals Industry
Suitable for petroleum cracking plants, chemical factories, warehouses, and petrol pumps. Cool air ventilation system helps improve employee morale and productivity and reduces absenteeism.
Restaurants & Cafe
Suitable for large spaces such as restaurants, cafés, and canteens. Enjoy advantages like improved employee morale as well as increased footfalls and larger orders.
Healthcare Industry
Suitable for hospital wards, nursing homes, and polyclinics, to prevent recirculation of stale air in line with W.H.O. recommendations. Gain indirect benefits like higher staff morale as well as improved patient outcomes.
FAQs - Ventilation Cooling System - Venti-Cool 11U
Ventilation cooling is a process that circulates fresh, cooled air through a space to maintain comfortable temperatures and improve air quality. It benefits industrial and commercial spaces by reducing heat stress, enhancing worker productivity and lowering energy consumption compared to traditional cooling methods.
The Venti-Cool 11U offers powerful air delivery up to 11000 CMH with a modular design that cools areas up to 700 sq.ft. Its three-sided cooling pads and adjustable discharge options provide superior cool air ventilation, making it adaptable to various commercial and industrial layouts.
Key features include UV stabilized high-grade plastic construction for weather resistance, a 0.45 kW two-speed motor for strong airflow, thick honeycomb pads for efficient cooling and versatile discharge options (top, bottom, side) to suit different installation needs.
Yes, the Venti-Cool 11U’s modular units and flexible discharge options allow it to fit seamlessly in various space sizes. Its design supports easy expansion, making it suitable for both small workshops and large factory floors.
The Venti-Cool 11U achieves a minimum cooling efficiency of 75%, thanks to its 60 mm thick honeycomb cooling pads and efficient airflow, ensuring consistent and effective ventilation cooling performance.
Symphony Venti-Cool 11U model offers easy-to-install accessories, including the LSV ducting system. Full installation can be completed within a few hours, minimizing downtime and disruption in commercial or industrial environments.
Regular cleaning of the honeycomb pads and water tank is essential to maintain optimal cooling performance and hygiene. Periodic inspection of the fan and motor is also recommended to ensure smooth operation of the cool air ventilation system.
By using evaporative cooling principles with efficient fans and modular design, the Venti-Cool 11U consumes less power than conventional air conditioning systems, providing an eco-friendly and cost-effective cool air ventilation solution.
Ventilation Cooling Related Products
Accessories for Ventilation Cooling System
Symphony LSV is designed for quick and easy installation. Any installation can be completed within a few hours!
*Actual measurements may vary within +/-15% of specified value
