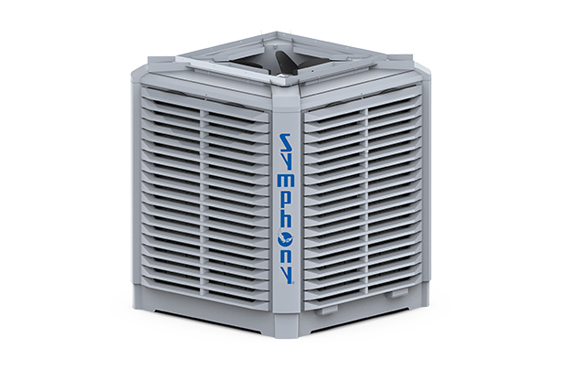

Venti-Cool 40 - Industrial Ducting Cooler
Venti-Cool - 40 Industrial Ducting Cooler
-
Modular units suitable for any area. One unit can cool up to 2500 sq.ft. (232 sq.m).* -
High quality air pre-filter to protect the cooling pad -
Weather resistant UV Stabilized high grade plastic body -
3 kW, motor for powerful air delivery of 40,000 CMH -
Four side cooling pads for superior cooling -
Easy installation and maintenance
*Scroll down for disclaimer

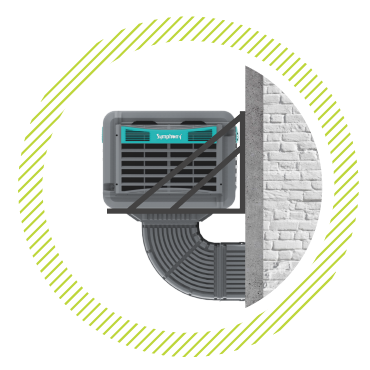

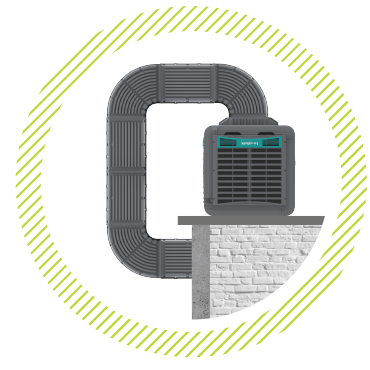

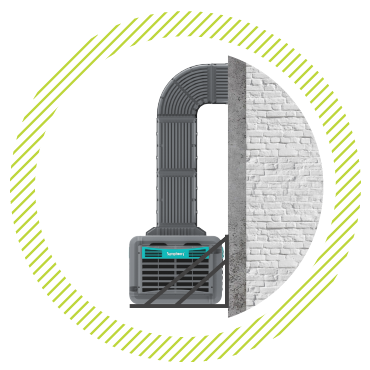

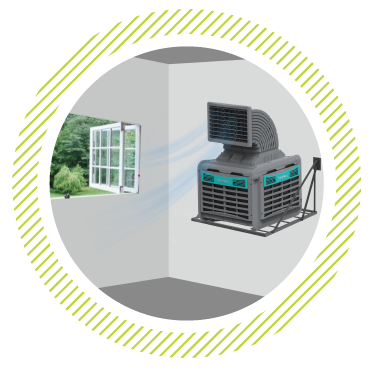

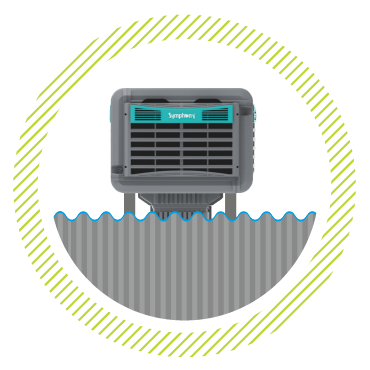

Universal Installations for Industrial Cooler
A Ventilation Cooling unit can be adjusted to fit into both large and small spaces. This flexibility also makes future expansion simple.
Technical Specifications of VC40D
Discharge -
Down
Nominal Max Airflow (m 3/h) -
40000
Cooling area (sq.ft.) -
Up to 2500
Net weight (kg) -
103
Operating weight (kg) -
171
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000
Outside dimensions (LxBxH in mm) -
1225 x 1225 x 1350
Air outlet dimensions (HxW in mm) -
777 x 777
Body material -
UV Stabilized High Grade Plastic
Tank capacity (L) -
40
Air moving device -
Fan
Fan diameter (mm) -
710
Cooling media -
Honeycomb pads
Pad thickness (mm) -
100
Cooling surface area of pad (sqm) -
3.6
Minimum cooling efficiency(%) -
80
Number of speeds (nos.) -
1
Duct length (m) -
Up to 125
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 20
Container quantity (40HQ) -
38(SKD)
Discharge -
Down
Nominal Max Airflow (m 3/h) -
40000
Cooling area (sq.ft.) -
Up to 2500
Net weight (kg) -
103
Operating weight (kg) -
171
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000
Discharge -
Down
Nominal Max Airflow (m 3/h) -
40000
Cooling area (sq.ft.) -
Up to 2500
Net weight (kg) -
103
Operating weight (kg) -
171
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000
Outside dimensions
(LxBxH in mm) -
1000 X 940 X 800
Air outlet dimensions
(HxW in mm) -
450 x450
Body material -
UV Stabilized Engineering Plastic
Tank capacity ([tr.) -
23
Air moving device -
Fan
Fan diameter (mm) -
425
Cooling media -
Honeycomb pads
Pad thickness (mm) -
100
Cooling surface area of pad (sqm) -
3.6
Minimum cooling efficiency(%) -
80
Number of speeds (nos.) -
1
Duct length (m) -
Up to 125
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 20
Container quantity (40HQ) -
38(SKD)
Technical Specifications of VC40T
Discharge -
Top
Nominal Max Airflow (m 3/h) -
40000
Cooling area (sq.ft.) -
Up to 2500
Net weight (kg) -
113
Operating weight (kg) -
181
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000
Outside dimensions (LxBxH in mm) -
1225 x 1225 x 1350
Air outlet dimensions (HxW in mm) -
777 x 777
Body material -
UV Stabilized High Grade Plastic
Tank capacity (L) -
40
Air moving device -
Fan
Fan diameter (mm) -
710
Cooling media -
Honeycomb pads
Pad thickness (mm) -
100
Cooling surface area of pad (sqm) -
3.6
Minimum cooling efficiency(%) -
80
Number of speeds (nos.) -
1
Duct length (m) -
Up to 125
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 20
Container quantity (40HQ) -
38(SKD)
Discharge -
Top
Nominal Max Airflow (m 3/h) -
40000
Cooling area (sq.ft.) -
up to 25500
Net weight (kg) -
113
Operating weight (kg) -
181
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000
Discharge -
Top
Nominal Max Airflow (m 3/h) -
40000
Cooling area (sq.ft.) -
Up to 2500
Net weight (kg) -
113
Operating weight (kg) -
181
Input power supply (V/Hz/Ph) -
380-415/50/3
Motor power (kw) -
3000
Outside dimensions
(LxBxH in mm) -
1000 X 940 X 800
Air outlet dimensions
(HxW in mm) -
450 x450
Body material -
UV Stabilized Engineering Plastic
Tank capacity ([tr.) -
23
Air moving device -
Fan
Fan diameter (mm) -
425
Cooling media -
Honeycomb pads
Pad thickness (mm) -
100
Cooling surface area of pad (sqm) -
3.6
Minimum cooling efficiency(%) -
80
Number of speeds (nos.) -
1
Duct length (m) -
Up to 125
Air Outlet Grills (N) [ 250mm X 250mm ] -
Up to 20
Container quantity (40HQ) -
38(SKD)
Why VC40?
| Parameters | Air washer unit | VC40 | Benefits in VC40 |
|---|---|---|---|
| Body material | Metal | UV Plastic | No corrosion |
| Motor power | 7 - 10 kW | 3 kW | Low power consumption |
| Footprint area | Very large | Compact | Space saving |
| Weight | Very heavy | Light weight | Easy and low-cost installation |
| Maintenance | Very high | Very low | Low maintenance cost |
Venti-Cool 40: Engineered to Deliver an Edge Over Air Washer
The VC40 represents the next generation of industrial cooling, engineered to replace bulky, inefficient traditional air washers. Designed for modern businesses that demand efficiency and longevity, the VC40 combines a compact form factor with superior performance.
Features That Make Venti-Cool 40 Better Than Air Washers
- Ultra-Efficient Operation: Powered by a 3kW motor, the VC40 consumes significantly less energy compared to the 7–10 kW consumption of standard air washers, delivering massive operational savings.
- Corrosion-Free Durability: Constructed with a high-grade UV Plastic body, the unit is immune to rust and corrosion, unlike traditional metal air washer units that degrade over time.
- Compact & Lightweight: Its smart design offers a compact footprint and light weight, ensuring easy handling and low-cost installation without sacrificing cooling power.
- Hassle-Free Maintenance: Built for reliability, the VC40 requires very low maintenance, minimizing downtime and reducing long-term upkeep costs.
Upgrade to the VC40 for a cooling solution that saves space, cuts energy bills, and lasts longer.
Industry Use Cases for Duct Coolers
Automobile Industry
Suitable for workshops making ancillaries and parts, large garages, and service centers. Gain indirect benefits like improved employee morale and productivity leading to greater innovation.
Agriculture Industry
Suitable for all agricultural produce markets in the supply chain. Helps improve employee morale, as well as reduces food spoilage thus resulting in higher profitability. This Industrial cooler price is much less than air conditioning system.
Metal Industry
Suitable for workshops, plants, mills making molded or beaten goods. Enjoy benefits like a positive work environment, reduced downtime, and higher profitability.
Textile Industry
Suitable for textile mills, bureaus, workshops, and warehouses. Gain indirect benefits like improved employee morale, concentration, and productivity.
IT Industry
This cooler ventilation system is suitable for large IT parks and smaller innovation centers. Enhances employee morale and productivity while fostering innovation.
Leather Industry
Ventilation cooling system is suitable for slaughterhouses and tanneries, as well as workshops making leather goods. Gain indirect benefits like higher innovation, leading to higher profitability.
Petrochemicals Industry
Suitable for petroleum cracking plants, chemical factories, warehouses, and petrol pumps. Cool air ventilation system helps improve employee morale and productivity and reduces absenteeism.
Restaurants & Cafe
Suitable for large spaces such as restaurants, cafés, and canteens. Enjoy advantages like improved employee morale as well as increased footfalls and larger orders.
Healthcare Industry
Suitable for hospital wards, nursing homes, and polyclinics, to prevent recirculation of stale air in line with W.H.O. recommendations. Gain indirect benefits like higher staff morale as well as improved patient outcomes.
FAQs - Industrial Ductiing Cooler - Venti-Cool 40
The system draws warm air through wet cooling pads where evaporation lowers the air temperature. This cooled air is then distributed evenly through ducting, providing consistent cool air ventilation throughout the facility. The Venti-Cool 40 uses powerful fans and large honeycomb pads to deliver efficient ventilation cooling across areas up to 2500 sq.ft.
Symphony Venti-Cool 40 body is made from UV stabilized high-grade plastic, which offers excellent resistance to weather elements such as sunlight and moisture. This ensures durability, corrosion resistance, and suitability for outdoor installations.
The cooling pads are 100 mm thick and have a total surface area of 3.6 square meters. These large, thick honeycomb pads allow for efficient evaporative cooling, enhancing the overall cooling performance.
Unlike traditional coolers, the Air Washer Cooler in the Venti-Cool 40 filters and humidifies air, enhancing indoor air quality while maintaining efficient ventilation cooling with low power consumption.
It supports up to 20 air outlet grills, each sized 250 mm by 250 mm, enabling broad and customizable air distribution tailored to facility needs.
- Massive Power Savings: A traditional air washer delivering 40,000 CMH typically consumes 7kW to 12kW. In contrast, the Symphony Venti-Cool 40 (VC 40) delivers the same 40,000 CMH airflow using only a 3kW motor.
- Operational Cost: Because of the advanced fan blade design and motor efficiency, the Venti-Cool can reduce your electricity bills by up to 70% compared to a traditional air washer system.
Symphony Venti-Cool 40 can deliver up to 40,000 CMH airflow combined with a 125-meter duct length and multiple air outlet grills ensures comprehensive and uniform cool air ventilation up to 2500 sq.ft. in large factories and warehouses.

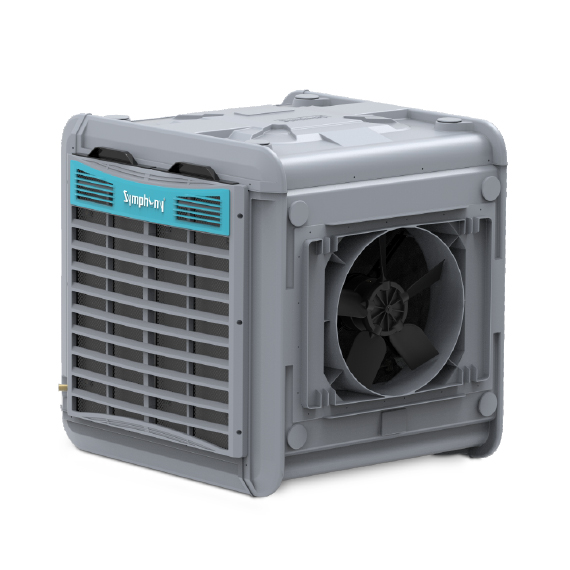

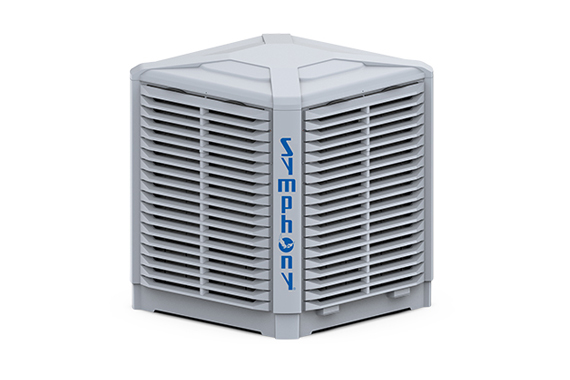

The Venti-Cool 40 comes in two variants: the VC40D with downwards air discharge and the VC40T with top air discharge, providing flexibility to suit different installation layouts and airflow requirements.
Related Venti-Cool Products
Accessories
Symphony LSV is designed for quick and easy installation. Any installation can be completed within a few hours!
*Actual measurements may vary within +/-15% of specified value
